CYCLO® HELICAL BUDDYBOX®
Click or tap plus for more info

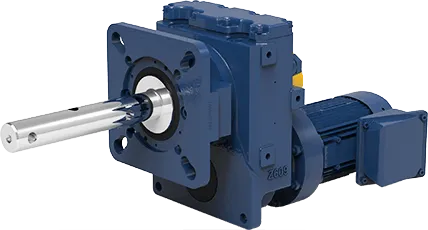

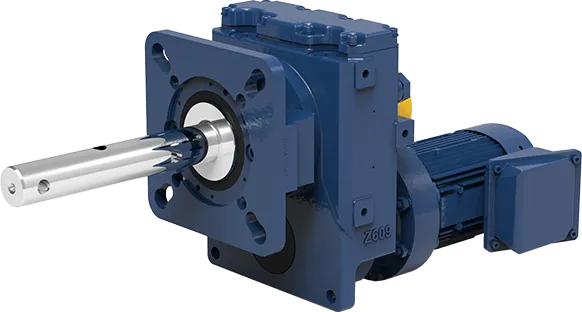

Keyed Hollow Bore
Simplest to install and widest choice of materials.
Available in sizes Z609 to E617.

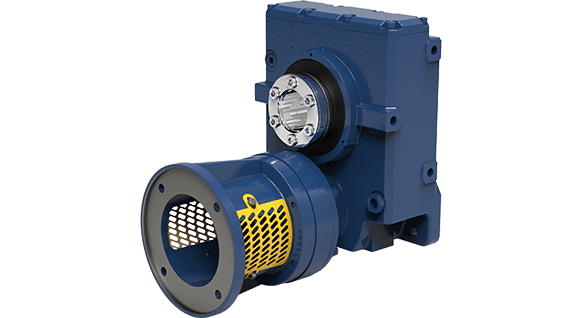

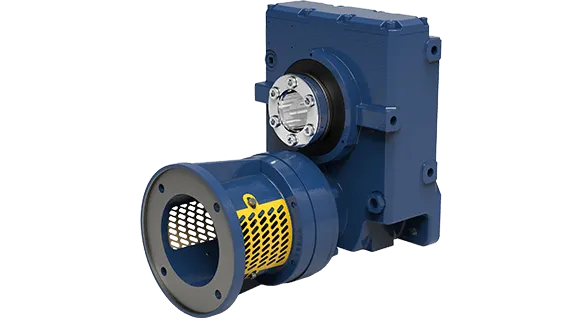

Coupled C-Face
Adapter windows simplify motor installation.
Available for Sizes: A to F.
Mounting Modal 7
Allows unusually compact installations.
Available for Sizes: 6060 to 6265.
Options Modal 4
Mill, chemical, food, and outdoor duty packages available.
Available for Sizes: 6060 to 6265.
Options Modal 5
Mill, chemical, food, and outdoor duty packages available.
Available for Sizes: 6060 to 6265.

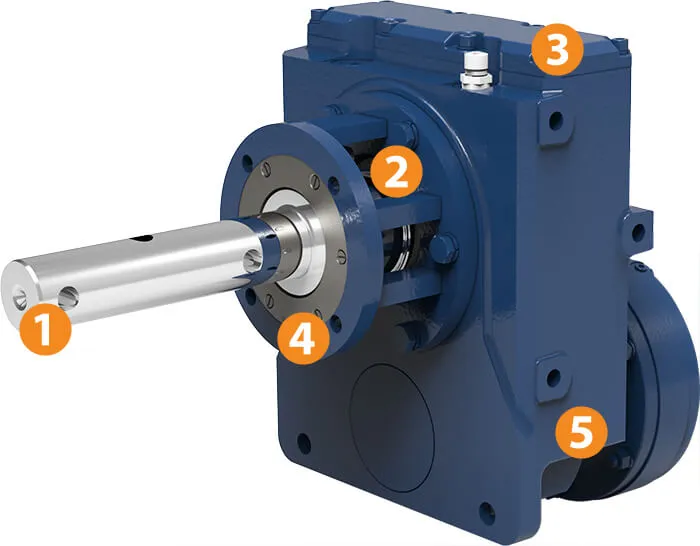

Drive Shaft and Mounting
Available in standard 3-hole and optional 2-hole designs; Keyed Hollow Bore or Taper-Grip shaft options available to provide cost-effective gearbox mounting.
Seals

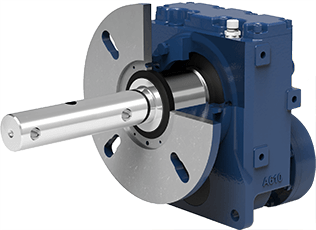

Double output seals for
virtually leak-free operation
and optimal protection
from lubrication contamination.
virtually leak-free operation
and optimal protection
from lubrication contamination.
Compact Housing
Smooth housing design is optimized for small mounting spaces.

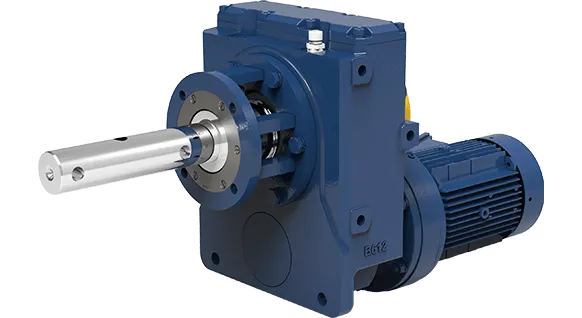

Screw Conveyor Adapter
CEMA 300 Standard Dimensions, available in cast iron.
Steel Gearing Components
High performance provides 85-90% efficiency across all ratios.

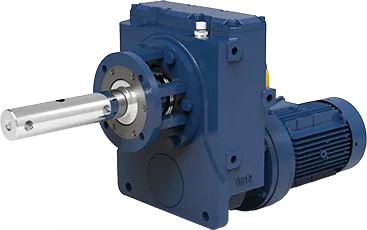

ADAPTER KIT
The CEMA Screw Conveyor Drive Adapter Kit is available for the Keyed Hollow Bore or the Taper-Grip® Bushing drive shaft and allows the reducer to properly mount to the screw conveyor.
STANDARD KIT INCLUDES
Adapter
Lip Seal
Keeper Plate and Hardware
IN/OUTPUTS
MOUNTING
CLICK TO VIEW
•
X Adapter
•
J Adapter
•

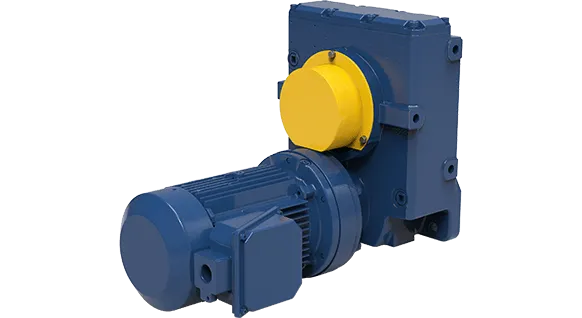

Gearmotor
•
Taper-Grip Bushing®
•
Keyed Hollow Bore
•
Unused
•
Hollow Shaft
•

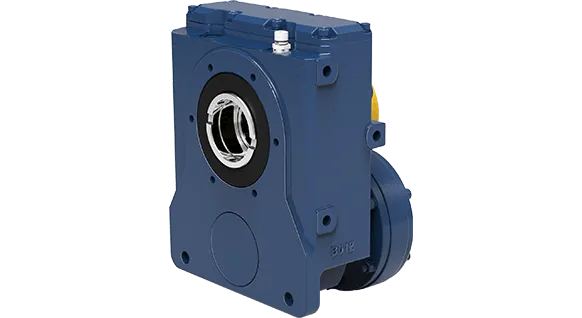

Face Mount
•

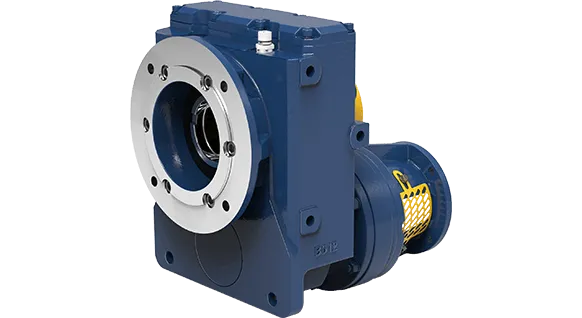

Flange Mount
•
Unused
•
N/A
•
N/A
•
CEMA Screw Conveyor Drive
•
Lip Seal
•
Motor Lantern

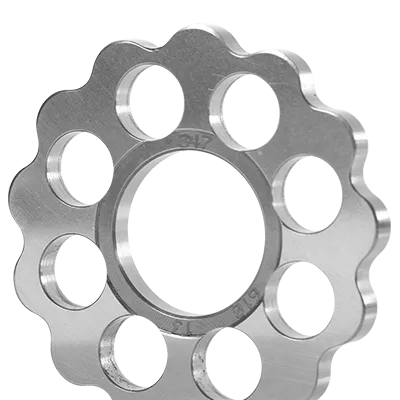

CYCLOIDAL TECHNOLOGY
Utilizes all Cyclo® input modifications
to produce high ratios in amazingly
small spaces.
to produce high ratios in amazingly
small spaces.
SPLIT HOUSING
Standard in large frame sizes to allow
easy maintenance. Available in
standard gray cast iron with ductile
and fabricated steel options.
easy maintenance. Available in
standard gray cast iron with ductile
and fabricated steel options.
TACONITE SEAL
This option features a dual-layer
oil and grease system.
oil and grease system.
HELICAL GEARING
Hardened-steel gearing.
OPTIONAL TACONITE
SEAL ASSEMBLY
Heavy-Duty, fortified, grease purgeable
system withstands the most demanding
applications.
system withstands the most demanding
applications.
LONG LIFE BEARINGS
Oversized, heavy-duty bearings
for maximum strength and
service life.
for maximum strength and
service life.
TIER 1 SUPPLIER
ROLLER BEARING
High capacity bearings increase load capacity without
increasing lead-time. Tapered, double-row spherical, or
cylindrical roller bearings depending on size and configuration.
increasing lead-time. Tapered, double-row spherical, or
cylindrical roller bearings depending on size and configuration.
MONOBLOC HOUSING
Cast iron housing is strong, corrosion resistant,
and sound dampening. Monobloc design
eliminates leaks at housing split.
and sound dampening. Monobloc design
eliminates leaks at housing split.

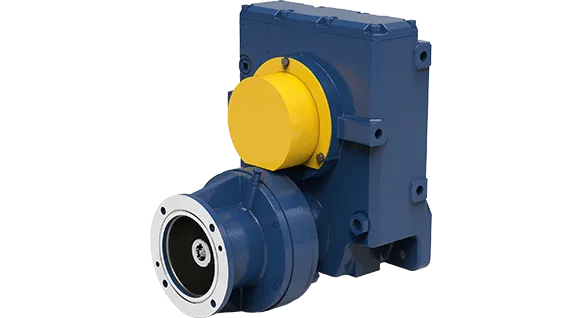

HIGH SPEED SHAFT
Supported by two bearings for long life, the quill
style motor adapter allows for maximum motor flexibility.
style motor adapter allows for maximum motor flexibility.
HIGH-SPEED SHAFT

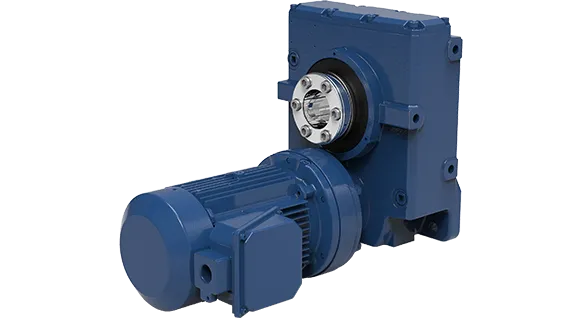

TAPER-GRIP BUSHING®
Our patented Taper-Grip Bushing® system
offers simple shaft mounting and provides
self-aligning, backlash-free torque
transmission to the driven shaft.
offers simple shaft mounting and provides
self-aligning, backlash-free torque
transmission to the driven shaft.
PINION SHAFTS
Rigid standardized pinion shafts and
housings for better lateral load distribution.
housings for better lateral load distribution.
DOUBLE OUTPUT SEALS
Swipe or move cursor to open
CYCLO® HELICAL BUDDYBOX®
INNOVATIVE SHAFT MOUNTED DRIVE SOLUTIONS
The Cyclo® Helical BuddyBox® combines the quiet, efficient, and reliable performance of the Cyclo® input with the rugged helical gear output.
The modular design provides a compact, efficient product and the most flexible range of output speed and torque combinations available.
The simple splash lubrication system extends the life of the unit and the highly efficient design has no thermal limitations.
The modular design provides a compact, efficient product and the most flexible range of output speed and torque combinations available.
The simple splash lubrication system extends the life of the unit and the highly efficient design has no thermal limitations.
SPECS
POWER RATING
Up to 30 kW
DIAMETER
40mm to 100mm
(Hollow Bore)
TORQUE
Up to 8,564 N•m
RATIO RANGE
11:1 up to 26,492:1
PARALLEL SPEED REDUCER
Did you know...
